Best quality, vivid color, capable for any color garments textiles
WER-D4880T is highly efficient printer with beautiful structure and cheap price, which is capable of printing on any colors t shirts, like black, red, yellow, white etc, color-printing directly without silk screen .
2880dpi max. printing resolution can let you print on any textiles with best result and vivid color from CMYK+WWWW
Specifications Of A2 D4880T Desktop DTG Printer
|Printing method||Drop on Demand ( non-contact micro piezoelectric ink-jet printing technology; micropiezoelectric printing technology; VSDT; intellingent nozzle cloggingsensor system ). 180nozzle/color*8; VSDT.|
|Head type||One Epson head|
|Max Printing size||420*900mm ( 16.5"35.4" )|
|Printing thickness||150mm max.|
|Ink type||Water based ink for T-shirt direct printing|
|Ink color||CMYK+WWWW or CMYK+CMYK|
|Ink Supply Method||Independent continous ink supply systerm|
|Printing interface||USB 2.0 high speed interface & 100 Base-T Ethernet interface|
|Printing direction||Smart Bi-directional Printing Mode|
|Printing speed||720 dpi 25 seconds/A4 size|
|1440 dpi 50 seconds/A4 size.|
|2880 dpi 110 seconds/A4 size.|
|Application||Cotton t-shirt, fabric|
|Power consumption||136 W/ Hour.|
|Ink consumption||10 ML/SQM.|
|Auto adjustment function||Nozzle automatic detection; print head automatic aligning|
|Height adjustment||Auto Sensor|
|Normal working environment||Temperature 10-35Celsius Humidity 20-80RH|
|Power/ Voltage||About 75W / 110V/220V 50-60HZ|
|Machine configuration||USB line; driving software; power line; instruction book; washing and ink-joiner tool|
|Operation system||Windows 2000 / XP / WIN7/ Vista, etc.|
|Media feeding system||Auto or Manual|
|Packing & Delivery:|
|Packing||To be packed with Timber with fumigation certificate|
|MOQ||One set per order|
|Delivery||7 working days afer receiving the deposit|

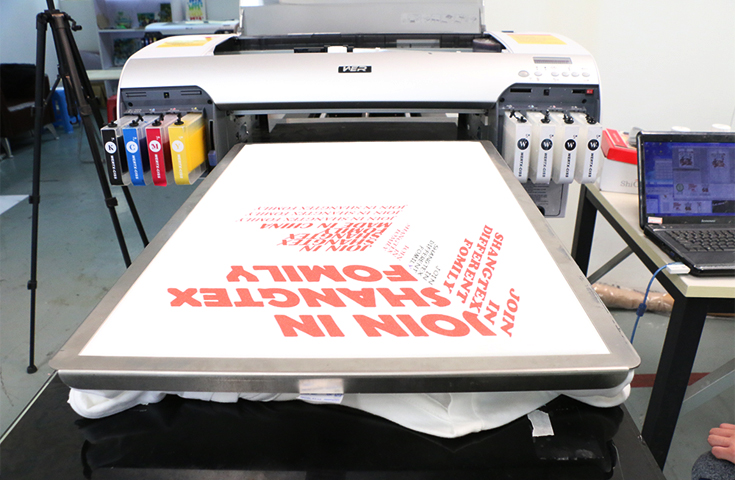

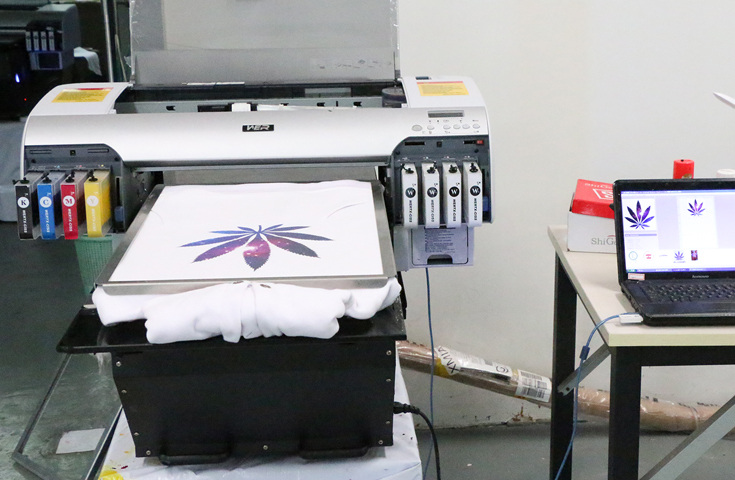

Easy Operation with WER-D4880T Printer
More than an image output, it's your time to stand on your stage. WER-D4880T printer is designed to ensure quality results even at higher speeds:
Original Epson 4880 printing system, which is equipped with original EPSON Piezo inkjet F186000 Printhead with 180 nozzles per channel.
Rigid industrial design ensures quality output with physical resolution 5760*2880dpi.
8 colors with best color performance, light and dark garment direct printing.
Adopt the advanced variable waterbed textile ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster.
High Performance-Price Ratio
Perfect printing size design
A2 420*900mm, A3 329*600mm, A1 600*1500mm.
Many customers think that A3 is too small for their business, while A1 is beyond their budget.
So our company recommend this new D4880UV to meet the demand of the majority and decrease their burden at the same time.
With its excellent and stable working performance,this new design become the mainstream of market.Compared with A3, you only pay little hundred USD more to get all that functions included.When it comes to A1, D4880T is several thousand USD cheaper.
From years of sales experience, this printer has very stable print performance, get good feedback from customers all over the world.
Rich, Vibrant, Durable Color effect
New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).
T-shirt printer is also called universal flatbed printers or flatbed printers, which breaks through the bottleneck of digital printing technology, to realize the true sense of a piece of printing, without plate making, a complete full color image, is the replacement of the traditional printing machine.
In currently printing industry, more professional industry, such as the traditional leather industry printing: silk screen printing color of a single, simple color; Large leather printing machine is expensive, high requirements for material; Thermal transfer material would be destroyed. Traditional way of printing is crystal industry lamination process. Organic glass industry is screen printing, metal industry are more thermal transfer, etc. So once you have textile printer, you have the stronger competitive advantage than the counterparts.
|1||Printhead||PCs||EPSON DX5||No||Physical resolution control|
|2||ink damper||pcs||No||Ink filter||$3.29|
|3||Ink tube||m||No||Ink transfer|
|4||Decoder Chip||pcs||No||Ink color control chip||$3.99|
|5||Wiper||pcs||No||Scrape the waste ink||$3.29|
|6||Ink cap top||pcs||No||Printhead moisturizing||$12.99|
|7||Syringe||pcs||No||Absorb ink when the ink tube is empty|
|8||Power cable||pcs||Yes||Power supply|
|9||Printhead data cable||pcs||No||Printhead data transfer||$2.49|
|10||Short motor belt||pcs||No||Physical resolution control|
|11||Raster strip||PCs||No||Printing calibration calculation||$9.99|
|12||Drag chain||PCs||Yes||Printheadhead position transfer|
|13||USB cable||m||Yes||Computer connection with printer|
|14||White ink cycle pump||PCs||No||Front & back position control|
|15||Front & back sensor||PCs||No||Physical resolution control|
|17||mainboard||PCs||Yes||Printer data control||$349.99|
|18||I/O board||PCs||Yes||Input & output board||$159.99|
|19||Y motor||PCs||Yes||Y drive control|
|20||Z motor||PCs||Yes||Z drive control|
|21||X motor||PCs||Yes||X drive control|
|22||LED UV Lamp||PCs||No||UV Drying system|
|23||Water cooling box||PCs||No||Water cooling system|
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
|1||3*2mm Black ink tube||2 m||Free|
|2||Black ink damper||2 pcs||Free|
|4||Ink cartridge chip||1 pc||Free|
|5||Syringe 10ML||6 pcs||Free|
|8||Software and Dongle||1 set||Free|
|9||Cotton swab stick||6 pcs||Free|
|10||Power cable||1 pc||Free|
If you have bought our WER printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.
|Static electricity is too high, which will burn out the printer head.||A:The Operator need to mak electrostatic eliminating treatment and wear the Anti-static devices if possible to prevent the high static load form burning the circuit board inside of the printer head.|
B: During installation, try not to touch the surface of print head directly.
|Printer head will be burned out if the USB line linked the printer head incorrectly||Please contact professional technician if you cannot install USB line of the printer head by following the original way of machine or operating instructions.|
|You should check if the outside voltage is stable and the input voltage is matched with the machine||You should check if the outside voltage is stable and the input voltage is matched with the machine.|
|You have to take of the printer head and clean it carefully.||You have to take of the printer head and clean it carefully.|
|There is no response after starting up.||Check power plug fuse|
