2018 new product 8 colors inkjet a1 6090 uv flatbed printer

Overview

High resolution, low cost, easy operation

With CISS System(continous ink supply system),can avoid the printer lacking ink during the printing process and save 50% ink.

Directly print on the cards,phone covers,wood etc., more convenient than the heat transfer printer, and faster than the silk printer.

Do not need the transfer paper, all process can be finished in one step.

Instant drying system.With the help of the UV system,the images printed on nearly all products and can be dried instantly.

Adopt the DX5 print head

With the scan of the infrared ray,all process is fully automatic,that is why it also be called as the"LAZY PRINTER"

Can print the white ink and 3d embossed image.(can print on any dark background products)

specifications

Specifications Of WER EP6090 A1 UV Printer

Printer Model	WER-EP6090UV
Printing method	Drop on Demand ( non-contact micro piezoelectric ink-jet printing technology; micropiezoelectric printing technology; VSDT; intellingent nozzle cloggingsensor system ). 180nozzle/color*8; VSDT.
Head type	One Epson DX5 head
Printing thickness	150mm
Max Printing size	24"36" (60 90cm)
Ink type	UV LED curing ink
Color number	8 ink cartridges(CMYK+WWWW or Dual CMYK)
Printing resolution	2880*1440dpi
Printing interface	USB 2.0 high speed interface & 100 Base-T Ethernet interface
Printing Direction	Smart Bi-directional Printing Mode
Ink used	180nozzle/color*8; VSDT
Applicable industry	Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, marble, granite, paperboard, etc.
Printing Speed	about 3.4min(360*360dpi; draft model)
	about 6.9min (720*360dpi; quality model)
	about 49min (720*720dpi; photo quality model)
	90s for A4 profile photo chrome model
Height detection of printing material	Infrared sensor
Power consumption	136 W/ Hour
Ink consumption	10 ML/SQM
Lamp type	LED Lamp (saving energy and environmental friendly)
Auto adjustment function	Nozzle automatic detection; print head automatic
Volume	305cmx120cmx203cm
Height adjustment	Auto Sensor
Normal working environment	Temperature 10-35Celsius Humidity 20-80RH
Power/ Voltage	78W / 220V/110V
Operation system	Windows 2000 / XP / WIN7/ Vista, etc.
Machine confiauration	USB line; driving software; power line; instruction book; washing and ink-joiner tool
Special remarks	Customized service is available.

Packing & Delivery:
Gross weight	350 KGs
Packing	plywood
Packing Size	1.5m * 1.4m * 1.5m
MOQ	1 set
Delivery	7 working days after receiving the deposit

features

Highest stability & precision

With the experience that many people desire to take large format uv flatbed printer for wide application, while most of them complained about the high cost, we’ve been thinking about it and hope to find a way out a long time ago.

Now WER-EP6090UV can realize your dream to own a big size uv printer at a quite affordable cost.

Original Epson 7880 printing system, which is equipped with original EPSON Piezo inkjet F186000 Printhead with 180 nozzles per channel.

Easily operated with LCD operation panel.

Ball screw drive system, air sucking platform & powerful servo motor, all these features allow it print in high precision.

Rigid industrial design ensures quality output with physical resolution 5760*2880dpi.

Providing of LED UV rigid ink, and you can print anything on different materials, superior quality.

Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster.

Quite affordable cost for a big size uv flatbed printer

Large format uv flatbed printer is widely available in the market, but the average cost is more than 15K USD, which is really a big burden to enter into a new business, especially for some small enterprises

Besides its excellent and stable print performance, WER-EP6090UV has a very competitive price and widely acceptable. Compared with mini size uv printer(e.g. A3), you only need to pay 2 - 3 K USD to own it which has a max print size up to 60 × 90 cm.

Well-known reputation

Stable print performance has helps it get very good feedback from customers all over the world.

Rich, Vibrant, Durable Color effect

New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).

applications

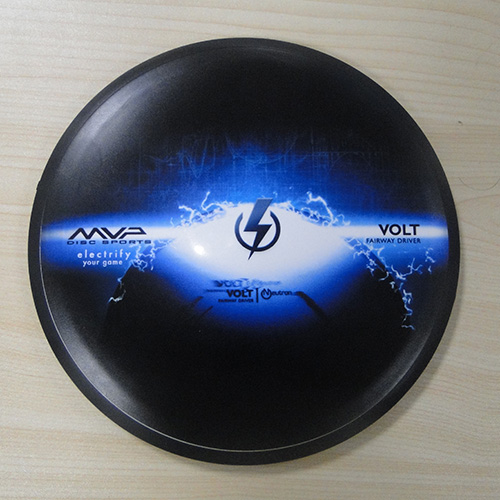

After 10 years’ of experience and exploring in printing industry，WER UV series mainly used for the following media as well：Rigid PVC board, plastic, organic board, leather, rubber, special paper, wood, porcelain, PVC, ABS, acrylic, aluminum, ceramic tile, marble, granite, paperboard etc

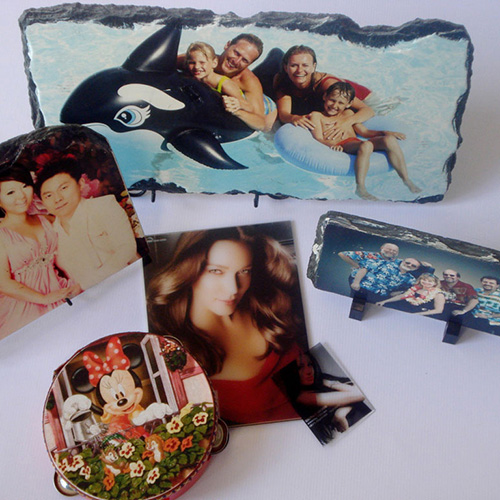

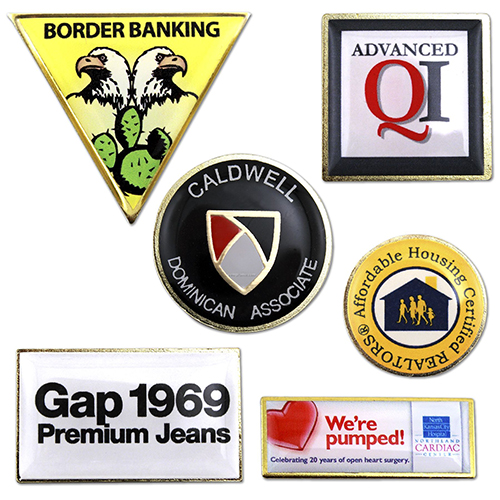

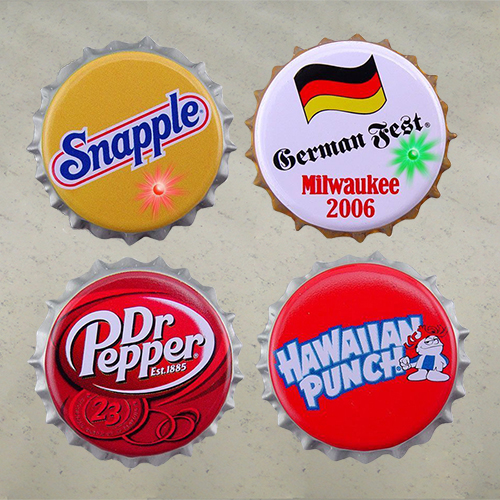

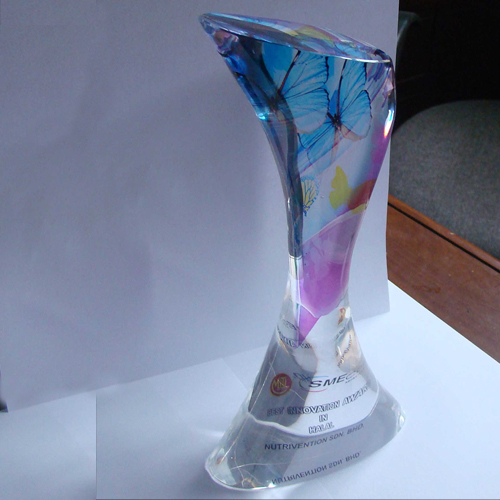

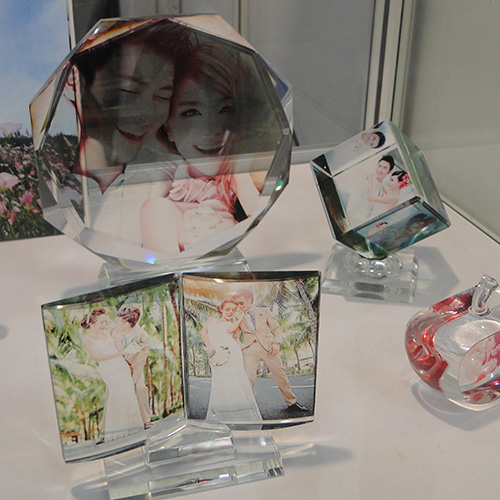

Crafts, Prize

As the formation of consumers market, high-end and precise crafts and prize items are required, product design and appearance is facing an unprecedented challenges. With this demand, our machine make continuous improvement, it can be done with high precision, high-quality and high-definition printing.

accessories

No.	Item	Unit	Discription	Warranty	Function	Price
1	Printhead	Pcs	EPSON F186000 DX5 Second encrypted	No	Physical resolution control
2	Mainboard	Pcs		Yes	Printer data control
3	PCB board	Pcs		Yes	Driver system
4	Carriage board	Pcs		Yes	Driver system
5	Servo motor	Pcs		No	Drive control
6	Servo motor driver	Pcs		No	Driver software for servo motor
7	Power supply	Pcs		No	Power control
8	UV Lamp water cooling box	Pcs		No	Cooling system
9	Printhead data cable	Pcs		No	Data transfer
10	LED UV Lamp	Pcs		No	UV curing system
11	Ink damper	Pcs		No	Ink filter
12	Ink tube	Pcs		Yes	Ink transfer
13	Ball screw	Pcs		Yes	Driver system
14	Wiper	Pcs		No	Scrape the waste ink
15	Motor belt	Pcs		No	Driver system
16	Carriage belt	Pcs		No	Driver system
17	Cleaning unit	Pcs		No	Cleaning system
18	LCD touch screen	Pcs		No	Touch screen control
19	Ink cartridge	Pcs		No	Ink container
20	Raster reader	Pcs		No	Data transfer
21	Raster sensor	Pcs		No	Data transfer

Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.

No.	Discription	Quantity
1	USB data cable	1	Free
2	Ink tube	2m	Free
3	Ink capping top	1	Free
4	UV ink damper	4	Free
5	Syringe	5	Free
6	Software & user manual	1set	Free
7	Power cable	2	Free
8	Funnel	5	Free
9	Ink chip	2	Free
10	Ink chip refresh	1	Free

Attention

1. When the equipment sent to the customers and ready to all install, the first thing is to prepare a voltage regulator, while civil voltage is stable now, but still there will be some floating up and down. Because of the voltage instability, which will have some difficulty in installation. The problem we met mostly may be the connection to computer, or after the online software can't normally opened, also is the computer power cord unexplained fever, which may affect the equipment! At this time we are going to use multimeter to measure the voltage to solve this matter!

2. When we switch on, machine reset successfully, then we open software. Since the connection when the machine is reset software absorbing ink pad will be a process of down and up, the device is reset, so as to lead to errors instructions, machine reset failed!

3. When using the equipment, printing products if happens to catch up with something not in, so it is better to turn off the software. Because the device under the connection state of software will continue to control flash spray nozzle, after a long time will lead to absorb ink pad ink spill over into the ink pad on the lines below, after a long time will affect the equipment!

4. If our production is completed, shut off the device, the software must be closed first.

5. Before you insert the data cables, turn off the printer power first.

6. Before printing works, you should make sure printheads don't hit print media, adjusting the nozzle height then send the print task.

7. Often clean the printhead and the printhead stays wet, prevent drying printhead from affecting the service life of the nozzle.

8.the machine doesn't work, don't inject ink into the cartridge.

9.if you haven’t operated the machine for a long time, clean up to remove the nozzle with a cleaning fluid stays wet.
