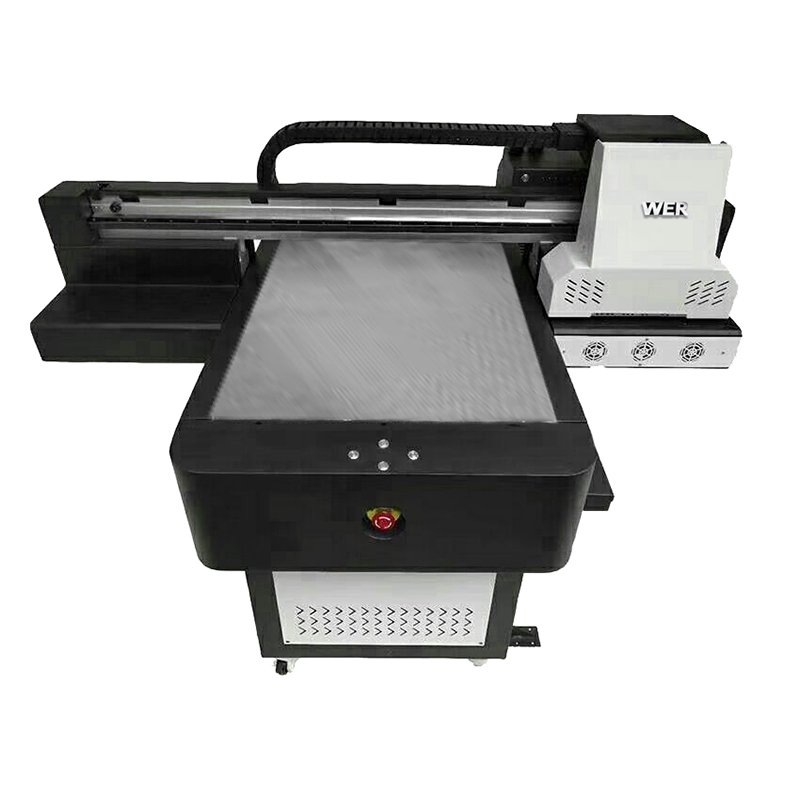

small size high quality phone case flatbed UV printer WER-ED6090UV

Small size high quality phone case flatbed UV printer WER-ED6090UV

Specifications of Flated UV printer for phone case:

Nozzle Configuration

Japan Epson print head

Head Number

One or two

Max Printing Sizes


Printing Speed

Two Epson heads:

Sketch model: 14m2/hour

Production Model: 8m2/hour

High Quality Pattern Model: 6m2/hour

Printing Materials

Type:All flat and cylindrical materials,such as Acrylic,Alumious model board,Ceramic Tile,Foam board,Sheet metal,Glass, Cardboard,and other flat objects.

Thickness: max 16cm

Weight:  15kg

Sizes:  450*900mm

Ink type

Blue, Magenta, Yellow, Black, Light blue, Light red, White,


The UV Lamp

LED curing light,Over 20000 hours lifespan,Water cooling/Air cooling

Data Transmission Interface


RIP Software


Power Supply Voltage

110-220V 50-60HZ



Adsorption of motor power (Optional)


Image Format


Color Control

In line with the international standard for the ICC,With curve and density adjustment function

Print Resolution


Operation Environment


Available The Ink

LED-UV ink,Solvent ink,Textile ink

Machine Size

1100*1130*770mm (L*W*H)

Package Size




Flatbed uv printer Features and Advantages:

1.Sliding ink station,Accurate alignment,good ink absorption.

2.Motor:Adopting AC servo motor,fast response and positioning.

3.Infrared protection system,Infrared up and down positioning,Precise positioning materials distance.

4.Printer structural design,Industrial design,delicate chic.

5.Nozzle collision protection,It can reduce the print heads damage rate.

6.Guideway:Using HIWIN Brand Guideway,Durable,High precision,Optional THK Guideway.

7.Imported LED Lamp bead,Light power is high,Lifespan is 2000-3000 hours.

8.Integral beam lift up and down,the height can be up to 160mm.

9.Water tank cooling,Using compressed water cooling technology,good heat dissipation effect,extend the service life of the LED lights.

10.Optional adsorption platform,cellular suction platform,it is convenient to adsorption all kind of soft materials.

Packaging & Shipping

Phone case flatbed uv printer packaging:

*Firstly, Packed the flatbed uv printer with plastic sheet for clearing and damp proofing.

*Secondly, Then put the uv printer in the plywood case for safety and clashing.

*Thirdly, Transport the plywood case into the container.

*Then we will delivery the UV printer to you within 3-7 days after receiveing the payment.

Our Services

1.1 year guarantee of the whole machine(except the printhead).
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the UV printer consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our technician can be sent to your company to install or adjust if necessary.

After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for UV printing machine(without person damaged).
Software: Whole life on update for free.
4. Maintenance and technological support: Whole life.

Quick Details

Condition: New
Place of Origin: shanghai, China (Mainland)
Dimensions(L*W*H): 1250*1230*1000mm
Gross Power: 700W
Plate Type: Flatbed Printer
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 180KG
Automatic Grade: Automatic
Color & Page: MULTICOLOR
Certification: CE ISO9001 SGS
Usage: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, All flat materials
Voltage: 110V/220V
Product Name: Phone case flatbed uv printer
Print Technology: Digital Direct Inkjet Printing
Print Mode: White and Color print at the same time
Ink Color: CMYK+WW
RIP Software: PhotoPrint/Monteiro/Ultraprint
Ink Consumption: 15ml per square meter
Print Resolution: 720*1440dpi
Print Thickness: Max.12cm
Max Print Speed:14 m2/h
Print Format: Max.440*850mm
