K3204I / K3208I 3.2m high resolution hot laminated flex printing machine

overview

Easily operated, auto cleaning function and auto height adjustment

In today’s economy, everyone want to know more and be known. For knowing and be known, we design the WER-K3204I, 3.2 meters high printing speed large format printer

Available for printing 10 feet width materials, the WER-K3204I is the perfect high-performance production tool for creating colorful decals, labels, banners, posters, vehicle and floor graphics, apparel decoration and just about any sign imaginable.

Multi-function and perfect industrial design

The 3.2m polaris WER-K3204I printer is the industry’s most versatile entry-level wide format color printer, combining CMYK 4 colors print, it offers print speeds can up to 120㎡/h. Other advanced features include automated maintenance, superior media handling.

Demand is higher, business is cranking, so everyone and everything has to be clicked in daily life. The K3204I is your perfect solvent digital printer for high quality, volume output of PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner Etc.And with an advanced media handling,and high-capacity inks, you can spend less time operating the printer andmore time making money.

specifications

Specifications Of K3204I / K3208I Flex Printing Machine

Printer Model	WER-K3204I / K3208I
Print Technology	Drop on demand Piezo Head (Konica 512I)
Head type	4 heads (Konica 512I) / 8 heads (Konica 512I)
Height of print head	1 mm - 10 mm above media, adjustable
Print width	3.2 m width
Printing resolution	1440dpi Max
Ink Type	Special ink for Konica 1024
Ink color	C M Y K
Ink Supply Method	Negative pressure ink supply system, main ink case 1 liter/color
media handle	roll to roll
Printing interface	USB 2.0
Printing direction	Smart Bi-directional Printing Mode
Printing speed	2 pass	98 m²/h
	3 pass	72 m²/h
	4 pass	49 m²/h
Languages	English, Chinese
Printable material	PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner, etc.
Power supplier	50HZ/60HZ, 220V(±10%)>15A
Locating Mode	Servo Driver / Servo Motor
Media feeding & take-up system	Infra Red Optical Controlling System for Media Feeding & Take-up
Dry system	Pre/Post and Middle heater controlled by PID
Motor	Fuji or Panasonic AC Servo Motor
Linear Rail	THK / HIWIN
Print head maintenance facility	Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system for print head	Double functional cleaning System of Pressure purge and Vacuum Suction
Normal working environment	Temperature 10-35 Celsius; Humidity 20-80RH
File Format	TIFF, JPEG, Postscript 3, EPS, PDFRGB/CMYK
Operational software	Maintop software, Photoprint software for Windows 98 and Windows XP Etc.
Filtration Facility	PALL filter + Regular ink filter
Operation Environment	Temperature: 23℃~29℃; Humidity: 50%~80%

Packing & Delivery:
Gross weight	1200 KG
Packing	To be packed with Timber with fumigation certificate
Packing Size	4.95 m x 1.14 m x 1.65 m
MOQ	One set per order
Delivery	7 working days after receiving the deposit

features

Equiped with Konica 512I Printhead wiht good quality.
Temperature control system offer easy & convenient operation
The double direction & step can be adjusted during printing process without stop.
Equipped with individual ink purge & cleaning function,3 direction valve ensure easy operation & comparatively less ink consumption.
Imported linear rail guider gurantee the precise running of printer.
Fans and infrared heater to make printing production dry sooner than before and more safety operation.
Feeding material system, roll to roll feeding system is suitable for flex banner, pvc vinyl, one way vision and other heavy or light roll material. Different material type have different feeding system.
Taking up material system with fast speed.
LED light is fitting for night works.

High Performance-Price Ratio

Perfect printing width design

To meet the demand of large format solvent media and industrial use，WER has developed this this Polaris series solvent printer which has 3.2m and 5.3m in width.And also the printing stable performance goes up to a new level.

applications

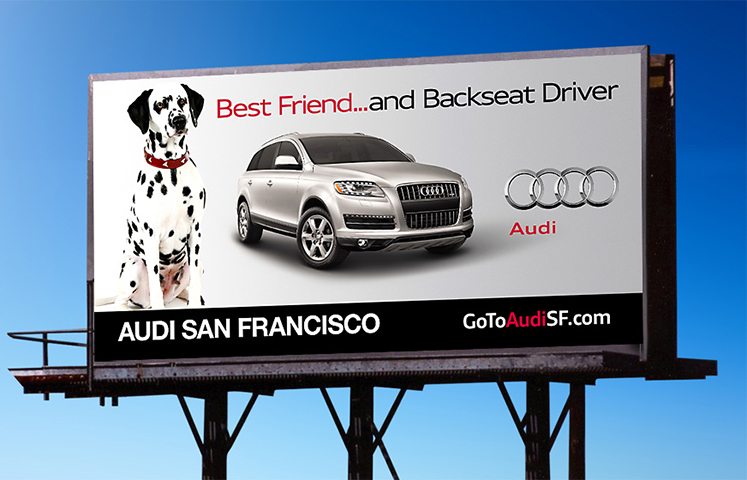

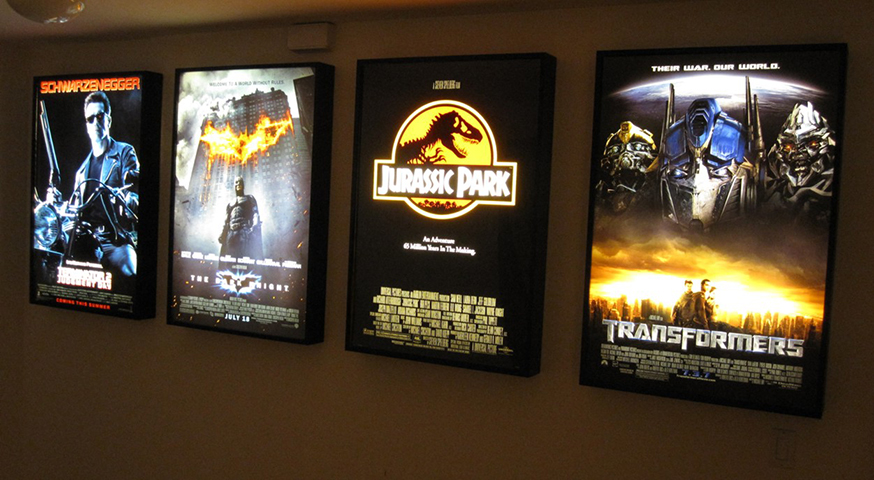

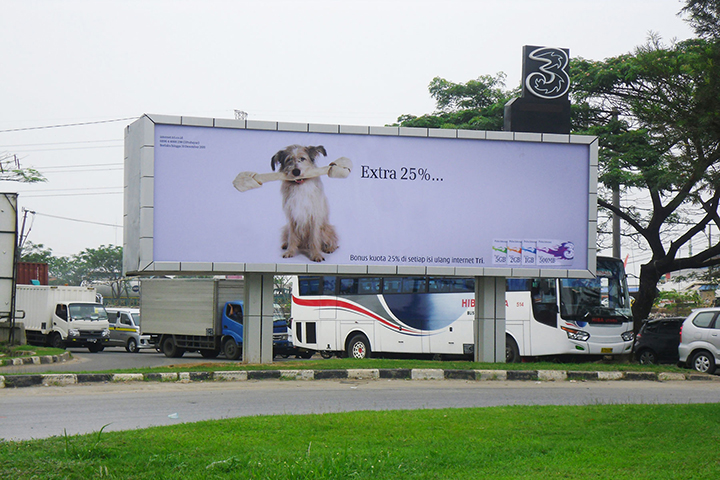

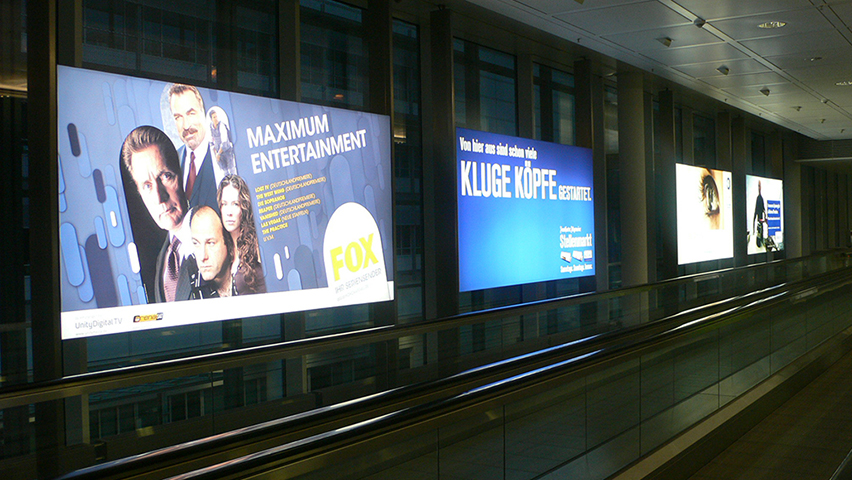

Keep R & D in this type printer over 10 years, now our solvent printer features good design, fast speed and most importantly very high stability. It is widely used for printing different billboards used on highway, big building, etc.

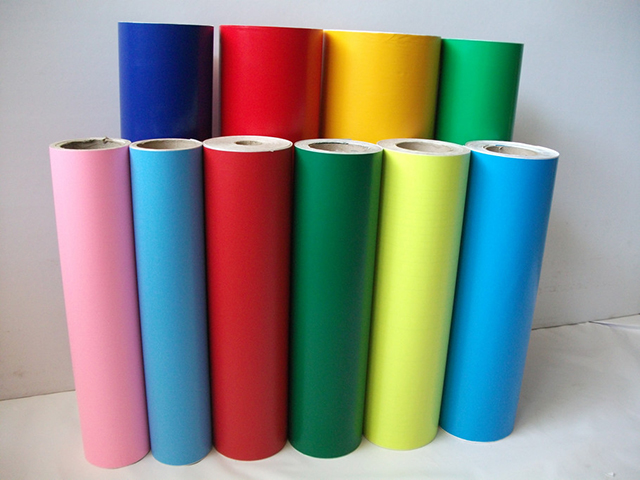

Banner cloth

Conference center, exhibition center, registration, municipal engineering, department stores, chain supermarkets, shopping plaza, jewelry chain monopoly, cosmetics, beverage, alcohol and tobacco trade, chain fast food, medicine, stationery chain center, high-quality goods wholesale center, furniture, home appliances, instruments, monopoly, such as advertising sales promotion project.

accessories

No.	Item	Unit	Discription	Warranty	Function	Price
1	Printhead	Pcs	Vulnerable parts		Physical resolution control
2	Ink damper	Pcs	Vulnerable parts		Ink filter
3	Ink tube	m			Ink transfer
4	Wiper	Pcs	Vulnerable parts		Scrape the waste ink
5	Ink cap top	Pcs	Vulnerable parts		Printhead moisturizing
6	Syringe	Pcs			Absorb ink when the ink tube is empty
7	Power cable	Pcs			Power supply
8	Printhead data cable	Pcs	Vulnerable parts		Printhead data transfer
9	Short motor belt	Pcs			Motor drive
10	Raster strip	Pcs	Vulnerable parts		Printing calibration calculation
11	Drag chain	Pcs			Printheadhead position transfer
12	USB cable	m			Computer connection with printer
13	Sensor reader	Pcs			Sensor control
14	Ink cartridge	Pcs			Store ink
15	Mainboard	Pcs			Printer data control
16	Head Board	Pcs			Input & output board
17	Y motor	Pcs			Y drive control
18	220 Power supply	Pcs			Power supply
19	X motor	Pcs			X drive control

Price description
For the above items, there are some consumable parts（like printheads）and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.

No.	Discription	Unit	Quantity
1	Ink Tank	500ml	4
2	Ink damper	Standard	2
3	Syringe	Standard	4
4	Copper Cap	small	4
5	Copper Cap	big	4
6	Quick Connector	4mm	10sets
7	Power cable		3
8	Driver software		1
9	Screws	3X8/4X8	20
10	Ink tube	3.8	2m
11	Ink tube	2.8	2m
12	Ink cap top		2
13	Ink pump		2
14	Printhead data cable		2
15	Raster strip		1
16	Swab rod		3
17	Y shape three direct links		1 package

Attention

1.Do not insert the printhead cable in a wrong position, in case of nozzle burn out.

2.In case of a sudden carriage crash, you should avoid nothing to stop the printhead carriage.

3.Be careful when you refill the inks, you should use a funnel to add in case that ink falls on the ground.

4.Printhead cleaning solution should be used when cleaning, in case of the printhead clogging.

5.Before operating the machine, you should read the instruction first, in order to avoid improper operation.
